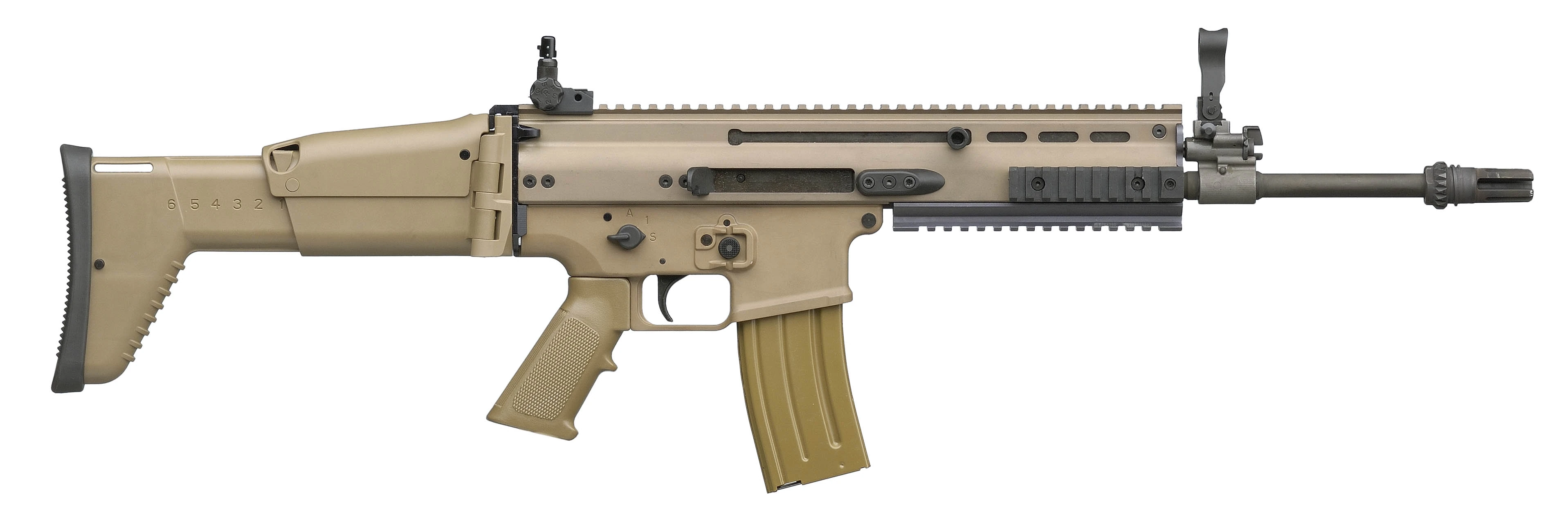

FN SCAR-L (Standard)
The Special Forces Combat Assault Rifle, or SCAR, is a modular rifle made by Fabrique Nationale de Herstal (FNH) for the U.S. Special Operations Command (SOCOM) to satisfy the requirements of the SCAR competition. This family of rifles consist of two main types. The SCAR-L, for light, is chambered in the 5.56x45mm NATO cartridge and the SCAR-H, for heavy, fires 7.62x51mm NATO. Both are available in Long Barrel and Close Quarters Combat variants. The civilian name of the weapon is FN SCAR 16 or FN SCAR 17.

History and DesignEdit

The US Special Operations Command (US SOCOM) issued a solicitation for the procurement of SOF Combat Assault Rifles (SCAR) on October 15, 2003. This solicitation requested a new combat rifle, specially tailored for the current and proposed future needs of the US Special Forces, which are somewhat different from latest generic US Army requirements, which are being fulfilled by the newest HK XM8 The key difference in basic requirements between XM8 and SCAR is that, while XM8 is a single-caliber weapon system, tailored for 5.56x45mm NATO ammunition, the SCAR should be available in various different calibers. Initial SOF requirements included two basic versions of SCAR system - the SCAR Light (SCAR-L), available in 5.56mm NATO, and the SCAR heavy (SCAR-H), which should be initially available in significantly more powerful 7.62x51 NATO chambering, and should be easily adaptable in the field to other chamberings. These other chamberings initially include the well-spread 7.62x39 M43 ammunition of the Soviet / Russian origins,
Fn-scar

Soldiers of the United States Marine Corps shooting targets with the FN SCAR

and probably some others (like the proposed 6.8x43 Remington SPC cartridge, especially developed for US Special Forces). The key idea of SCAR rifle system is that it will provide the Special Forces operators with wide variety of options, from short-barreled 5.56mm SCAR-L CQC variation, tailored for urban close combat, and up to long range 7.62x51 SCAR-H Sniper variant, as well as 7.62x39 SCAR-H, which will accept "battlefield pickup" Ak-47/AKM magazines with 7.62 M43 ammunition, available during the operations behind the enemy lines. Both SCAR-L and SCAR-H shall be initially available in three versions, Standard (S), Close Quarters Combat (CQC) and Sniper Variant (SV; now it is dubbed Long Barrel - LB). All these variants, regardless the caliber and exact configuration, will provide the operator with the same controls layout, same handling and maintenance procedures, and same optional equipment, such as sights, scopes, and other current and future attachments.

Late in 2004 US SOCOM announced, that the winner for the initial SCAR contracts is the FN USA, an US-based subsidiary of the famous Belgian company Fabrique Nationale Herstal. prototype rifles were manufactured by FN Manufacturing Inc, US-based subsidiary to FN Herstal; This company will also handle series production of rifles. Starting mid-2005, first SCAR rifles went to end users in US Special Operation Forces. Since US SOCOM uses Navy-type "mark" designations, SCAR rifles were officially designated as 5.56mm Rifle Mark 16 (SCAR-L / Light) and 7.62mm Rifle Mark 17 (SCAR-H / Heavy). It is believed that Mk.16 and Mk.17 rifles will gradually replace most rifle systems now in service with US SOCOM forces, such as M4 carbines, M-16 rifles, M14 rifles and Mk. 25 sniper rifles.

As it turned out, FN SCAR rifles are not based on any previous weapons but designed from the scratch. In all variants FN SCAR rifles feature gas operated, short stroke piston action with rotating bolt locking. Bolt system appears to be somewhat similar to that of FN Minimi / M249 SAW machine gun. This system apparently is less sensitive to fine sand, dust and any other fouling inside the receiver, than any system with M16-type multi-lug bolt and plunger-type ejector. Receiver is made from two parts, upper and lower, connected with two cross-pins. Upper part is made from extruded aluminium, lower part is made from polymer. SCAR-L and SCAR-H use similar upper receivers that differ only in the size of ejection port. Other different parts include caliber-specific bolt, barrel, and lower receiver with integral magazine housing. Parts commonality between SCAR-L and SCAR-H is astonishing 90%. Barrels are quick-detachable, and held in the upper receiver with two cross-bolts. Barrel change procedure requires minimum amount of tools, takes just several minutes and there is no need to adjust the headspace after the change.

The trigger unit with ambidextrous safety-fire mode selector switch allows for single shots and full automatic fire, with no provisions for limited-length bursts mode. The charging handle could be easily installed on either side of the weapon, so the upper
Fn SCAR

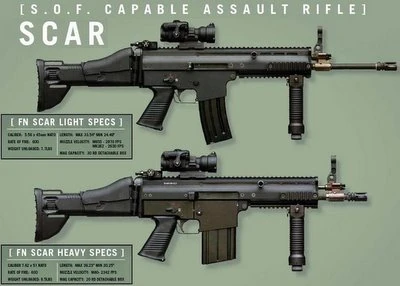

Light and Heavy SCARs

receiver has respective cuts on both sides. Top of the upper receiver is covered by the full-length integral Picatinny rail (MIL-STD 1913); additional Picatinny rails are mounted on both sides and under the free-floating handguards. Side-folding polymer buttstock is adjustable for length of pull, and is shaped to provide positive cheek rest with adjustable cheek support. SCAR rifles are fitted with removable, adjustable iron sights, with folding diopter-type rear sight on the receiver rail, and folding front sight on the gas block. Any additional type of sighting equipment, necessary for current tasks, including telescope and night sights, can be installed using MIL-STD 1913 compatible mounts.

Mk.16 SCAR-L rifle will use improved M16-type magazines, made of steel; Mk.17 SCAR-H will use proprietary 20-round magazines in 7.62x51 NATO chambering, or standard AK-type magazines in proposed 7.62x39 M43 chambering. Current prototypes of SCAR rifles do not have bayonet mounts, and, probably, will never have one.

SpecificationsEdit

  • Cartridge: .223 Remington (SCAR-L) or .308 Winchester (SCAR-H)
    Scar h

    A SCAR-H in CQC configuration

  • Action: Gas-operated, rotating bolt
  • Rate of Fire: 625 rounds/min
  • Muzzle Velocity: 800 m/s (2630 ft/s)
  • Feed System: 30 Rounds magazine (SCAR-H) or 20 Rounds magazine (SCAR-L)
