The RPG-7 is a Russian anti-tank rocket launcher created by the Soviet Union in 1961 as an improvement of the RPG-2, it could be considered one of the most successful rocket launchers in the world.

DescriptionEdit

Th

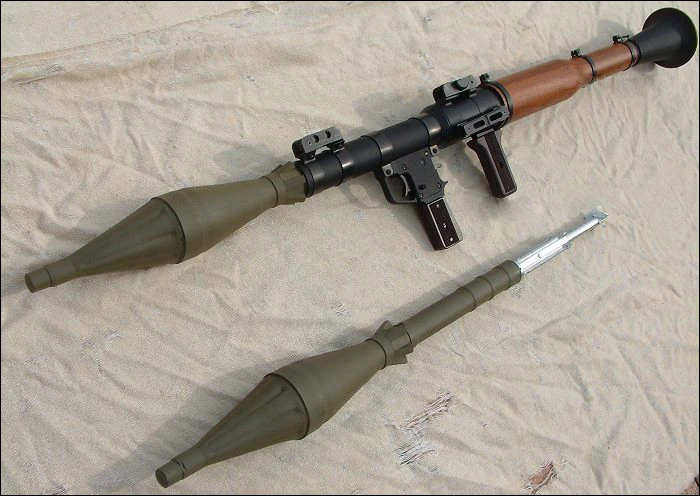

Rpg7a6dm

RPG-7

e RPG-7 is a further development of the previous RPG-2 antitank grenade launcher. RPG-7, in its first version, known as RPG-7V, has been adopted by Soviet army in 1961, and still is widely fielded in Russia and at least 50 more countries. By far, RPG-7 can be considered as one of the most successful antitank grenade launchers ever made.Initially thought as an anti-armor weapon, it latter has been adopted for other fire-support missions by introduction of various types of grenades, such as anti-infantry HE-FRAG, multi-purpose Thermobaric / FAE, and some other types of ammunition. The antitank grenades for RPG-7 also came a long way, from original PG-7V grenade, with penetration of about 260mm/10inches of RHA, and up to 500mm/20inches of RHAor 1.5 meters/5 ft of brick wall with single-warhead PG-7VL grenade, developed in 1977. By the late 1980s, a tandem-type PG-7VR grenade has been introduced. This grenade has two warheads and is intended against the most modern tanks, fitted with ERA (Explosive Reactive Armor). Front warhead sets off the ERA, and second warhead then penetrates more than 600mm/24in of armor. The RPG-7 is a shoulder fired, single-shot, smoothbore recoilless launcher. Grenades are loaded from the front, and the rear of the barrel is fitted with venturi nozzle. Because of the recoilless design, there is a dangerous backblast zone, more than 20 meters/60 ft long. The antitank grenades are of combination type, using a charge of smokeless powder for RCL-type launch. Once grenade reaches safe distance from the shooter (about 10–20 meters), the built-in rocket booster engine ignites and further accelerates the grenade, greatly enhancing the effective range (up to 500+ meters for single warhead grenades, up to200+ meters for
RPG soldier and squad

A Bulgarian soldier with an RPG-7, equipped with a red dot reflex sight.

much heavier tandem or FAE grenades). Because of increase in range, RPG-7 is usually issued with 2.7X fixed magnification optical sight, designated PGO-7. The sight has a range-finding scale for typical targets (tanks) with height of 2.7m/9 ft, and windage adjustment scales. RPG-7 also fitted with backup iron sights. RPG-7 uses mechanical ignition system with manually cocked external hammer, and a single-action trigger. Because of this, grenade must be properly aligned with the firing mechanism upon loading. Each AT grenade consists of a large-caliber HEAT warhead with base fuze, with the 40mm diameter rocket engine behind. The rocket nozzles are located at the front of the engine, close to the warhead. The tail of the rocket is fitted with folding stabiliztator fins, which are extended when grenade leaves the barrel. The launch charge, made of black powder, is loaded into a combustible cardboard case, and attached to the rear of the grenade prior to loading into launcher. Grenades and launch charges are carried in special backpacks. By the original soviet standards, grenadier carries two rounds, and his assistant carries three more. There were several minor upgrades to the basic design of the RPG-7 in USSR and Russia, the most important being the RPG-7D, with two-part takedown barrel, which was issued to the airborne troops. Since RPG-7 was, and still is manufactured in many countries(such as Bulgaria, China, Iraq and Romania, to name a few), there are plenty of modifications in launcher, and, more important, in grenades. RPG-7 is a simple and inexpensive weapon, yet it possess a high threat to most modern tanks, and also can serve in a number of other roles, making it a true one-man artillery.

OperatorsEdit

  • Afghanistan
  • Albania
    Rpg-7 3

    An Iraqi soldirer prepares to fire the RPG-7 from behind cover

  • Algeria
  • Angola
  • Armenia
  • Azerbaijan
  • Belarus
  • Benin
  • Botswana
  • Bulgaria: Produced locally by Arsenal Corporation as ATGL-L.
  • Cambodia
  • Cape Verde
  • Central African Republic
  • Chad
  • Congo-Brazzaville
  • Croatia
  • Cuba
  • Cyprus
  • Czech Republic
  • Democratic Republic of Congo
  • Djibouti
  • Egypt
  • Eritrea
  • Georgia
  • Ghana
  • Guinea
  • Guyana
  • Iran
    Rpg-7 5

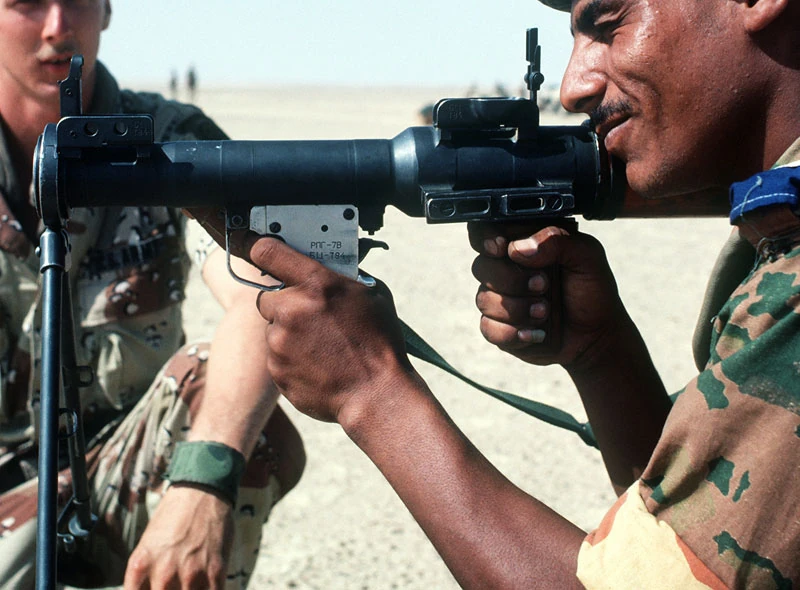

    An Egyptian soldier demonstrates the proper hold for a RPG-7 to an American infantryman

  • Ireland (Provisional IRA)
  • Iraq
  • Jordan
  • Kazakhstan
  • Kyrgyzstan
  • Laos
  • Latvia
  • Lebanon
  • Libya
  • Lithuania
  • Macedonia
  • Madagascar
  • Malta
  • Mauritania
  • Moldova
  • Mongolia
  • Morocco
  • Nicaragua
  • Nigeria
  • North Korea
  • Pakistan
  • Poland
  • Romania
  • Russia
  • Rwanda
  • São Tomé and Príncipe
  • Senegal
    Rpg-7 2

    A U.S soldier peers through the flip-up sight on his RPG-7

  • Seychelles
  • Sierra Leone
  • Somalia
  • South Africa: South African National Defence Force.
  • Sudan: Made by Military Industry Corporation as the Sinar.
  • Syria
  • Tajikistan
  • Togo
  • Turkey
  • Turkmenistan
  • Ukraine
  • Uzbekistan
  • United States - Manufactured by Airtronic USA.
  • Vietnam
  • Yemen
  • Zambia
  • Zimbabwe

SpecificationsEdit

Name Type Weight Explosive Weight Diameter Penetration Lethal radius
PG-7V Single-stage HEAT 2.6 kg (5.7 lb) 85 mm (3.35 in) > 330 mm RHA (12.9 in)
PG-7VL Single-stage HEAT 2.6 kg (5.7 lb) 730 g (окфол filler) 93 mm (3.65 in) > 500 mm RHA (19.5 in)
PG-7VR Tandem HEAT 4.5 kg (9.9 lb) 1.43 kg (окфол filler) 105 mm (4.1 in) 600–700 mm RHA

(after reactive armor)

OG-7V Fragmentation 2 kg (4 lb) 210 g (0.46 lb) 40 mm (1.6 in) 7 m (23 ft)

(vs. body armor)

TBG-7V Single-stage thermobaric 4.5 kg (9.9 lb) 1.9 kg ОМ 100МИ-3Л + 0.25 kg A-IX-I 105 mm (4.1 in) 10 m (33 ft)
