The Su-47 Berkut (Russian for Golden Eagle) or S-37 Berkut is a supersonic fighter developed by sukhoi aviation.

DevelopmentEdit

Originally known as the S-37, Sukhoi redesignated its advanced test aircraft as the Su-47 in 2002. Officially nicknamed Berkut
E0041466 471870bd0463f

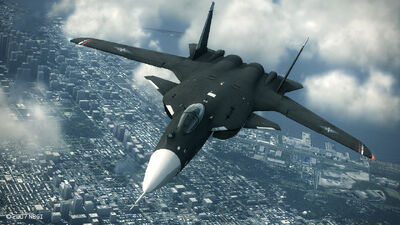

Su-47 Berkut

(Golden Eagle), the Su-47 was originally built as Russia's principal testbed for composite materials and sophisticated fly-by-wire control systems. The aircraft makes use of forward-swept wings allowing superb maneuverability and operation at angles of attack up to 45° or more.

TsAgI has long been aware of the advantages of forward-swept wings, with research including the development of the Tsibin LL and study of the captured Junkers Ju 287 in the 1940s. Forward-swept wings yield a higher maximum lift coefficient, reduced bending moments, and delayed stall when compared to more traditional wing shapes. At high angles of attack, the wing tips remain unstalled allowing the aircraft to retain aileron control. Unfortunately, forward sweep also induces twisting (divergence) strong enough to rip the wings off an aircraft built of conventional materials. Only recently have composite materials made the design of aircraft with forward-swept wings feasible.

The project was launched in 1983 on order from the Soviet Air Force. But when the USSR dissolved, funding was frozen and development continued only through funding by Sukhoi. Like its US counterpart, the Grumman X-29, the Su-47 is primarily a technology demonstrator for future Russian fighters. However, Sukhoi is now attempting to market the Su-47 to the Russian military and foreign customers as a production fighter in its own right.

DesignEdit

Outline of the Sukhoi Su-47 the Su-47 is of similar dimensions to previous large Sukhoi fighters, such as the Su-35. To reduce development costs, the Su-47 borrowed the forward fuselage, vertical tails, and landing gear of the Su-27 family. Nonetheless, the aircraft includes reduced radar signature features (including radar absorbent materials), an internal weapons bay, and space set aside for an advanced radar. Though similar in overall concept to the American X-29 research aircraft of the 1980s, the Su-47 is about twice the size and far closer to an actual combat aircraft than the US design.

To solve the problem of wing-twisting, the Su-47 makes use of composite materials carefully tailored to resist twisting while still allowing the wing to bend for improved aerodynamic behavior. Due to its comparatively large wingspan the Su-47 is to be equipped with folding wings in order to fit inside Russian hangars.

Like its immediate predecessor, the Su-37, the Su-47 is of tandem-triplane layout, with canards ahead of wings and tailplanes. Interestingly, the Su-47 has two tailbooms of unequal length outboard of the exhaust nozzles. The shorter boom, on the left-hand side, houses rear-facing radar, while the longer boom houses a brake parachute.

ManeuverabilityEdit

The Su-47 has extremely high agility at subsonic speeds, enabling the aircraft to alter its angle of attack and its flight path very quickly while retaining maneuverability in supersonic flight. The Su-47 has a maximum speed of Mach 1.6 at high altitudes and a 9g capability.

Maximum turn rates, and the upper and lower limits on airspeed for weapon launch, are important criteria in terms of combat superiority. The Su-47 aircraft has very high levels of maneuverability with maintained stability and controllability at extreme angles of attack. Maximum turn rates are important in close combat and also at medium and long range, when the mission may involve engaging consecutive targets in different sectors of the airspace. A high turn rate of the Su-47 allows the pilot to turn the fighter aircraft quickly towards the next target to initiate the weapon launch. Like most other fighters with fly by wire controls, the Su-47 achieves some of its high maneuverability through relaxed stability. The swept-forward wing, compared to a swept-back wing of the same area, provides a number of advantages in comparison to most of the other aircraft :

  • higher lift-to-drag ratio
  • higher capacity in dogfight maneuvers
  • higher range at subsonic speed
  • improved stall resistance and anti-spin characteristics
  • improved stability at high angles of attack
  • a lower minimum flight speed
  • a shorter take-off and landing distance

FuselageEdit

The Su-47s fuselage is oval in cross section and the airframe is constructed mainly of aluminium and titanium alloys and 13% (by weight) of composite materials. The nose radome is slightly flattened at the fore section, and has a horizontal edge to optimise the aircraft's anti-spin characteristics.

WingsEdit

The forward-swept midwing gives the unconventional (and characteristic) appearance of the Su-47, earning it the nickname of 'devil' and 'slingshot'. A substantial part of the lift generated by the forward-swept wing occurs at the inner portion of the wingspan. The lift is not restricted by wingtip stall. The ailerons - the wing's control surfaces - remain effective at the highest angles of attack, and controllability of the aircraft is retained even in the event of airflow separating from the remainder of the wings' surface.

The wing panels are constructed of nearly 90% composites. The forward-swept midwing has a high aspect ratio, which contributes to long-range performance. The leading-edge root extensions blend smoothly to the wing panels, which are fitted with deflectable slats on the leading edge; flaps and ailerons on the trailing edge. The all-moving and small-area trapezoidal canards are connected to the leading-edge root extensions.

The downside of such a wing design is that it produces strong rotational forces that try to twist the wings off, especially at high speeds. This twisting necessitates the use of a large amount of composites in order to increase the strength and durability of the wing. Despite this strengthening, the plane was initially limited to Mach 1.6. Recent engineering modifications have raised this limit, but the new limit has not been specified. Nevertheless, it is rumored that the Su-47 prototype recently suffered some manner of wing failure during testing. As a result, Western analysts speculate that Sukhoi engineers have restored the prototype to a conventional swept-wing layout. Apparently, the engineers reached the same conclusions with regard to the viability of a forward-swept layout as their counterparts at Grumman did twenty years ago with the X-29. Therefore, it is likely that any derivative production aircraft based on Su-47 research will utilize a conventional wing layout.

Thrust vectoringEdit

The thrust vectoring (with PFU engine modification) of ±20° at 30°/second in pitch and yaw will greatly support the agility gained by the forward-swept-wings.

CockpitEdit

The cockpit's design has focused on maintaining a high degree of comfort for the pilot and also on the pilot being able to control the aircraft in extremely high g-load maneuvers. The aircraft is equipped with a new ejection seat and life support system. The variable geometry adaptive ejection seat is inclined at an angle of 60°, which reduces the impact of high g forces on the pilot. The seat allows dogfight and missile avoidance maneuvers with significantly higher g loadings than can normally be tolerable. The Su-47 pilot uses a side-mounted, low-travel control stick and a tensiometric throttle control. Pilots, however, claim that the cockpit gives them low visibility due to poor design. This reclined seating arrangement was first used in the American F-16, but was determined to be of little value.

SpecificationsEdit

  • Cruising speed: Mach 1.16
  • Maximum Speed: mach 1.60
  • Rate of Climb: 2000 m/min
  • Power: 1.5
  • Load factor: 10 Gs
  • Turnover rate:32º/s&nbsp
  • Reason rolling: º290 s
  • Mileage / range: 3300 km
  • Radar range: 200 km
  • Buoyancy: 2X 15 500 Kgf
    SU47

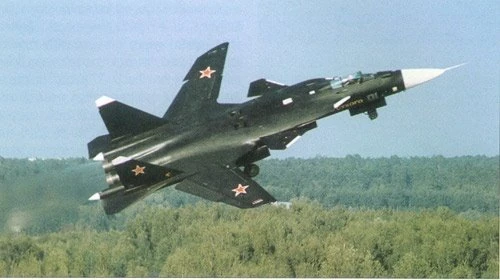

    Su-47 Berkut, takes off in an impressive display of power in a Russian air show MAKS

DimensionsEdit

  • Length: 22.60 m
  • Wingspan: 16.70m
  • Height: 6.40 m
  • Weight: 15500 kg

ArmamentEdit

  • Air Air: Missile R77M, R73 Archer, K74Ar land: X-29T, X-29L, X-59m, X-31P X-31A, KAB-500 KAB-1500
  • Internal: A cannon GCH 301, 30 mm of the same type of Flanker
